Helping Hand Brackets

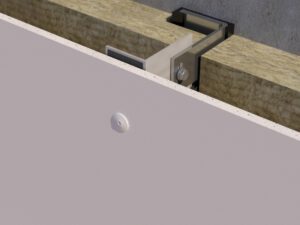

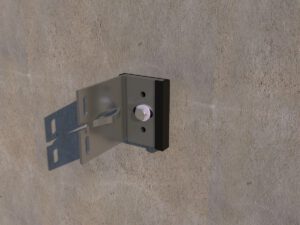

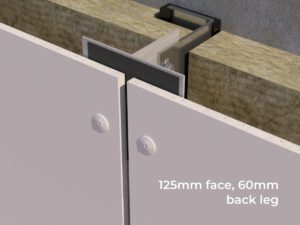

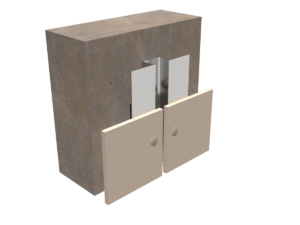

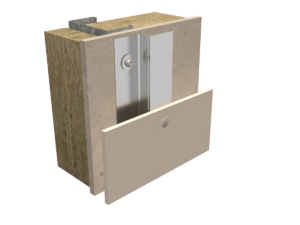

A simple cladding support system usually consists of ‘helping hand’ brackets that are anchored to the substrate at predetermined vertical and horizontal spacing. There are two types of brackets – vertical and horizontal. Profiles are then attached to them. Vertical profiles (‘L’ rails, which are typically positioned at intermediate points) and horizontal profiles (‘T’ rails, which are typically positioned at panel joints) are mostly used. They can be more complex to accommodate different cladding panels.

DESIGNED TO BE STRONG, LIGHT AND HIGH-PERFORMING

Kladworx offers a range of Aluminium Helping Hand brackets that assist in achieving the U-value. The “FastFrame” brackets are ideal for achieving passive house levels of performance, while the L brackets are suitable for most UK projects.

The Fastframe Adjustable Helping Hand Support Brackets are easier, quicker, and safer to install on-site. In both vertical and horizontal formats, our brackets reduce the risk of dropping components and making the installation and the site safer.

Kladworx’s helping hand brackets, support cladding system, are made of 5251 H22 Grade aluminium metal that suits most brands of aluminium cladding. Our brackets are available in standard sizes of 40-400mm, and in two sizes (single and double). We can provide an in-house technical service to determine the safest and most economical bracket spacing to support your façade.

FEATURES & BENEFITS

Diverse Range of Systems to Accommodate Virtually All Systems
BBA Certified System
Full Adjustment of 25 to 40mm
A1 Non Combustibility
Full Project Builder – Site Specific Calculations
Fast Delivery – UK Only

Supply & Installation Service

Kladworx is one of the leading sources for aluminium helping hand support brackets supply and installation in London, West Sussex, Kent, Essex, East Sussex, Hertfordshire, Surrey, and surrounding areas. We pride ourselves on providing brackets that perfectly match the needs of each customer.
